2 Phase 4 Wire 270mA Micro Stepper Motor with 10mm Micro Slider Screw for Optical Instruments

Name: 2 Phase 4 Wire 270mA Micro Stepper Motor with 10mm Micro Slider Screw for Optical Instruments
Brand: VIC-TECH
Price: 2.20 USD

Buy cheap 2 Phase 4 Wire 270mA Micro Stepper Motor with 10mm Micro Slider Screw for Optical Instruments product

Model Number : VSM1069

Brand Name : VIC-TECH

Place of Origin : Jiangsu, China

Certification : RoHS

MOQ : 2

Price : $2.20-7

Phase : 2

Current per Phase : 270mA

Motor Diameter : 10mm

Rated Voltage : 3.0 V DC

Coil Resistance : 15Ω±10%

Step Angle : 18°/Step

Max Starting Frequency : 800 PPS min

Max Slewing Frequency : 1100 PPS min

Pull in Torque : 3.0 gf-cm min

Pull out Torque : 3.8 gf-cm min

Insulation Class : CLASS E

Insulation Strength : 300 V AC

Insulation Resistance : 50mΩ

Operating Temperature : -20~+70℃

Screw Pitch : 0.4mm

Contact Now

Product Description

2 Phase 4 Wire 270mA Micro Stepper Motor with 10mm Micro Slider Screw for Optical Instruments

VSM1069 is a precision micro step motor, the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod
supporting the turn of the screw into a thrust.
Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm,
to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is
widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and
other forms.
The mounting bracket can be changed according to the customer's request.
Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product
development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

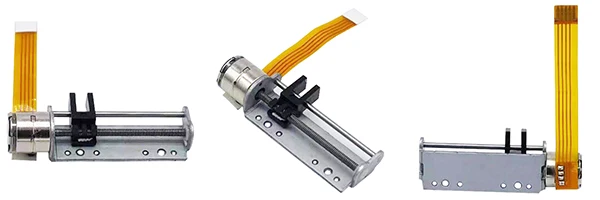

Product: picture:

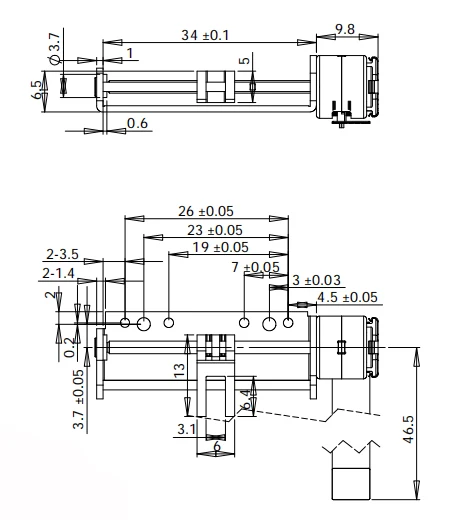

Design Layout (Unit:mm)

Specification

PRODUCT NAME	VSM1069 MICRO STEPPER MOTOR
Motor diameter	10mm
Rated Voltage	3.0 V DC
Coil Resistance	15Ω±10%
No.Of Phases	2 Phases
Step Angle	18°/Step
Max Starting Frequency	800 PPS min.(AT 3.0 V DC)
Max Slewing Frequency	1100 PPS min.(AT 3.0 V DC)
Pull in Torque	3.0 gf-cm min(AT 500 PPS,3.0 V DC)
Pull out Torque	3.8 gf-cm min(AT 500 PPS,3.0 V DC)
Insulation Class	CLASS E FOR COILS
Insulation Strength	300 V AC FOR ONE SECOND
Insulation Resistance	50mΩ(DC 100 V)
Operating Temperature Range	-20~+70℃

Packing & Delivery

Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
