15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution

Product Categories

Changzhou Vic-Tech Motor Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution

Name: 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 002mm Resolution
Brand: VIC-TECH
Price: 6.31 USD

Buy cheap 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution product

Model Number : SM15-45L

Brand Name : VIC-TECH

Place of Origin : Jiangsu, China

Certification : RoHS

MOQ : 2

Price : $6.31-15

Motor diameter : 15mm

Rated Voltage : 6V DC

Coil Resistance : 15±10% ohm/PHASE(20℃)

Current Per Phase : 400 mA/Phase(1000pps)

No.Of Phases : 2 Phases

Step Angle : 18°/Step

Excitation Method : 2-2Phases Drive

Drive Mode : Bipolar Drive

Pull-out Thrust : More Than 200 g At 500 pps

Max Response Frequency : More Than 1200 PPS

Max Staring Frequency : More Than 900 PPS

Insulation Class : CLASS E FOR COILS

Insulation Strength : 100 V AC FOR ONE SECOND

Insulation Resistance : 50MΩ DC 500V

Operating Temperature Range : -0~+55℃

Contact Now

Product Description

15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution

SM15-45L is a precision screw motor with a pitch of 0.4mm between the output shaft and the screw. The rotation of the screw and the screw support the screw to generate thrust. The basic step angle of the motor is 18 degrees, the motor runs 20 steps per week, and the displacement resolution can reach 0.02mm, achieving the purpose of precise control. The actuator adopts the subdivision drive mode to meet the requirements. Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers! Customer needs are our efforts, please feel free to contact us!

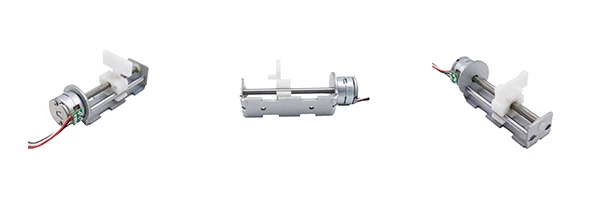

Product: picture:

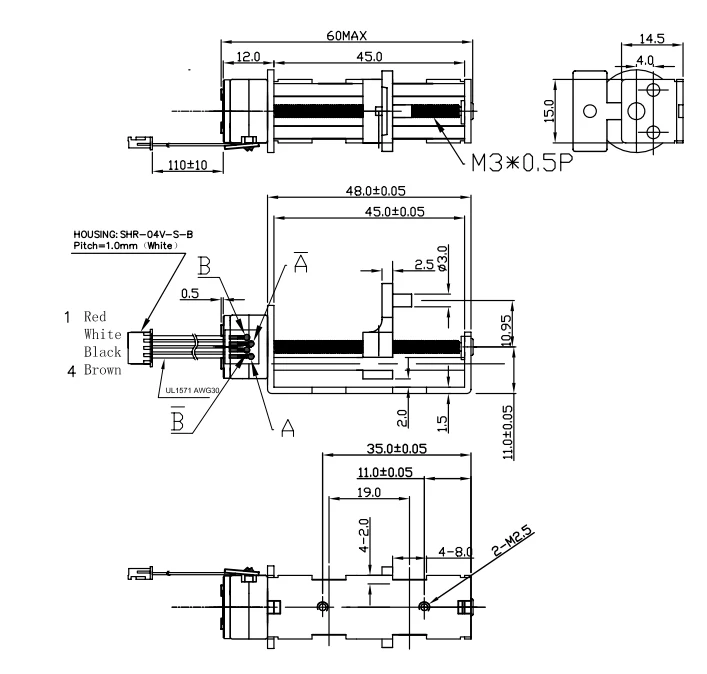

Design Layout (Unit:mm)

Specification

Model No.	SM20-45L-S
Motor diameter	15mm
Rated Voltage	6V DC
Coil Resistance	15±10% ohm/PHASE(20℃)
Current Per Phase	400 mA/Phase(1000pps)
No.Of Phases	2 Phases
Step Angle	18°/Step
Excitation Method	2-2Phases Drive
Drive Mode	Bipolar Drive
Pull-out Thrust	More Than 200 g At 500 pps
Max Response Frequency	More Than 1200 PPS
Max Staring Frequency	More Than 900 PPS
Insulation Class	CLASS E FOR COILS
Insulation Strength	100 V AC FOR ONE SECOND
Insulation Resistance	50MΩ DC 500V
Operating Temperature Range	-0~+55℃

Packing & Delivery

Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit

Company Profile

Changzhou Vic-Tech Motor Techology Co., Ltd has been specializing in producing micro motors and accessories since 2011.Our main products:Micro stepper motor,geared motor,underwater thruster and motor drivers and controllers. We have a R & D team with 20 years of experience in motor development, providing customers with design and development custom services. By leveraging our honesty, dependability and quality, Vic-Tech Motor aims to continue as a pioneer in the sales overseas by seeking global partners.

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(35.00%),North America(25.00%),Northern Europe(20.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
stepper motor,linear motor,geared motor,micro motor,BLDC motor

4. why should you buy from us not from other suppliers?
Vic-Tech Motor has been specializing in producing micro motors since 2011.Our main products:Micro stepper motor,geared motor,underwater thruster and motor drivers and controllers.We provide customers with design and development custom services.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese
